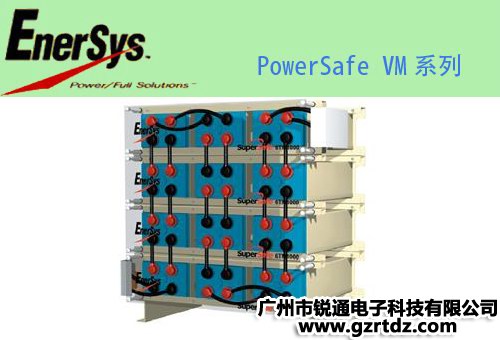

The PowerSafe™ VM range offers the ideal solution for large capacity, valve regulated lead acid battery requirements. PowerSafe VM’s modular design concept, with its integral racking system, provides a cost effective compact battery solution combined with a quick, simple on site installation process. PowerSafe VM’s extra thick positive grids provide excellent performance and service life across an extensive range of applications including, telecommunications, power generation/distribution sites, both low and high rate UPS and emergency lighting.
PowerSafe VM’s utilise the proven AGM gas recombination technology, removing the need for the addition of water to any cell throughout its operational life, which provides for battery solutions not requiring a separate battery room and only minimal maintenance.
Features & Benefits
•Capacity range: 200Ah - 5000Ah
•Side or top terminations depending on configuration
•Front connections provide excellent maintenance access
•UL94 V-0 rated flame retardant container and lid as standard
•100% nominal C10 capacity check prior to dispatch
•Proven in service
Construction
•Extra thick lead-tin-calcium positive grids to minimise corrosion and prolong service life
•Balanced lead-calcium negative grids to optimise recombination efficiency
•Separator in low resistance microporous fibre glass material within which the electrolyte is fully absorbed, thus preventing acid spills in the case of accidental damage
•Container and heat sealed lid in UL94 V-0 rated flame retardant polypropylene as standard
•Cells housed in steel modules complete with integral racking system
•Seismic Zone 4 UBC 1997 approved racking, optional on many configurations
•Terminals with a large surface area copper insert to provide maximum conductivity
•Ring burn terminal seal with secondary epoxy resin seal, 100% factory tested and proven in service
•Self regulating pressure relief valve with integral flame arrestor
Installation & Operation
•Recommended float charge voltage: 2.280Vpc at 20°C, 2.265Vpc at 25°C
•The PowerSafe VM range is designed for horizontal installation and can be installed safely within equipment rooms. A separate dedicated battery room is not necessary
•Six month shelf life at 20°C
•Minimal maintenance: no addition of water required
Standards
•Compliant with international standard IEC 60896-2
•Classified as "Long Life" according to Eurobat Guide 1999
•Approved to be shipped as non-hazardous cargo in accordance with the requirements of IMDG (International Maritime Code for Dangerous Goods) and OICA (Organisation of International Civil Aviation)
•UL recognised component
•ALL cells are proven to have 100% of rated C10 capacity in the factory prior to dispatch
•Manufactured in EnerSys production facilities that are certified to ISO 9001:2000
General Specifications
|
Type
|
Nominal
Voltage(v)
|
Nominal Capacity(Ah)
|
Nominal Dimensions
|
Typical
Weight(3)
|
Short Circuit
Current
(A)
|
Internal
Resistance
(mΩ)
|
|||||||
|
10 hr rate
To 1.80Vpc
@20℃
|
8 hr rate
To 1.75Vpc
@77oF
|
Length
|
Depth(1)
|
Height(2)
|
|||||||||
|
mm
|
in
|
mm
|
in
|
mm
|
in
|
kg
|
lbs
|
||||||
|
12VM-200
|
12
|
200
|
200
|
665
|
26.2
|
330
|
13.0
|
218
|
8.6
|
108
|
238.1
|
2746
|
4.370
|
|
12VM-300
|
12
|
300
|
300
|
893
|
35.2
|
330
|
13.0
|
218
|
8.6
|
158
|
348.3
|
3882
|
3.090
|
|
12VM-400
|
12
|
400
|
400
|
843
|
33.2
|
516
|
20.3
|
218
|
8.6
|
204
|
449.7
|
4050
|
2.950
|
|
12VM-500
|
12
|
500
|
500
|
957
|
37.7
|
516
|
20.3
|
218
|
8.6
|
239
|
526.9
|
5180
|
2.310
|
|
12VM-600
|
12
|
600
|
580
|
1071
|
42.2
|
516
|
20.3
|
218
|
8.6
|
281
|
619.5
|
6090
|
1.970
|
|
6VM-850
|
6
|
850
|
840
|
801
|
31.5
|
516
|
20.3
|
218
|
8.6
|
203
|
447.5
|
7980
|
0.750
|
|
6VM-1000
|
6
|
1000
|
1000
|
915
|
36.0
|
516
|
20.3
|
218
|
8.6
|
234
|
515.9
|
9275
|
0.640
|
|
6VM-1000A
|
6
|
1000
|
1000
|
801
|
31.5
|
584
|
23.0
|
218
|
8.6
|
235
|
518.1
|
7212
|
0.832
|
|
6VM-1100
|
6
|
1100
|
1080
|
972
|
38.3
|
516
|
20.3
|
218
|
8.6
|
255
|
562.2
|
9673
|
0.620
|
|
6VM-1200
|
6
|
1200
|
1200
|
915
|
36.0
|
584
|
23.0
|
218
|
8.6
|
269
|
593.0
|
8219
|
0.730
|
|
6TM-1300
|
6
|
1300
|
1300
|
972
|
38.3
|
584
|
23.0
|
218
|
8.6
|
287
|
632.7
|
8571
|
0.700
|
|
6VM-1360
|
6
|
1360
|
1360
|
1145
|
45.1
|
516
|
20.3
|
218
|
8.6
|
316
|
696.6
|
10453
|
0.570
|
|
6VM-1500
|
6
|
1500
|
1500
|
915
|
36.0
|
558
|
21.0
|
278
|
10.9
|
359
|
791.4
|
10733
|
0.560
|
|
6VM-1600
|
6
|
1600
|
1600
|
1145
|
45.1
|
584
|
23.0
|
218
|
8.6
|
369
|
813.5
|
11057
|
0.540
|
|
6VM-1700
|
6
|
1700
|
1640
|
972
|
38.3
|
558
|
21.0
|
278
|
10.9
|
386
|
850.9
|
11215
|
0.535
|
|
4VM-2000
|
4
|
2000
|
2000
|
791
|
31.1
|
558
|
21.0
|
278
|
10.9
|
307
|
676.8
|
17467
|
0.229
|
|
2VM-2600
|
2
|
2600
|
2600
|
676
|
26.6
|
584
|
23.0
|
218
|
8.6
|
196
|
432.1
|
17391
|
0.115
|
|
2VM-3000A
|
2
|
3000
|
3000
|
801
|
31.5
|
584
|
23.0
|
218
|
8.6
|
235
|
518.1
|
22222
|
0.090
|
|
2VM-3000
|
2
|
3000
|
3000
|
638
|
25.1
|
558
|
21.0
|
278
|
10.9
|
245
|
540.1
|
21978
|
0.091
|
|
2VM-3600
|
2
|
3600
|
3600
|
915
|
36.0
|
584
|
23.0
|
218
|
8.6
|
369
|
813.5
|
25000
|
0.080
|
|
2VM-4000
|
2
|
4000
|
4000
|
791
|
31.1
|
558
|
21.0
|
278
|
10.9
|
307
|
676.8
|
26667
|
0.075
|
|
2VM-4500
|
2
|
4500
|
4500
|
915
|
36.0
|
558
|
21.0
|
278
|
10.9
|
359
|
791.4
|
32780
|
0.061
|
|
2VM-5000
|
2
|
5000
|
4920
|
972
|
38.3
|
558
|
21.0
|
278
|
10.9
|
386
|
850.9
|
34483
|
0.058
|
Notes:
1)The depth shown in the table is for the module only .Add 86mm to obtain the overall depth including the front panel.
2)To calculate the total height of a battery stack multiply the module height by the number of modules in the stack add 100mm for the base support except for the VM-1500,1700,2000,3000,4000,4500 and 5000 modules where 120mm must be added.
3)The typical weight of the module excludes the connectors,terminal plates, front panels and base support.
4)PowerSafe VM batteries are designed for horizontal installation only.
5)The excellent flexibility afforded by the modular construction design provides for further combinations of capacity,voltage or footprint in addition to those illustrated in the above tabulation,eg 2VM-3200, 2VM-4800, 4VM-1000,4VM-1700 etc.
